Sand filter

홈>제품정보>수처리장치>Sand filter

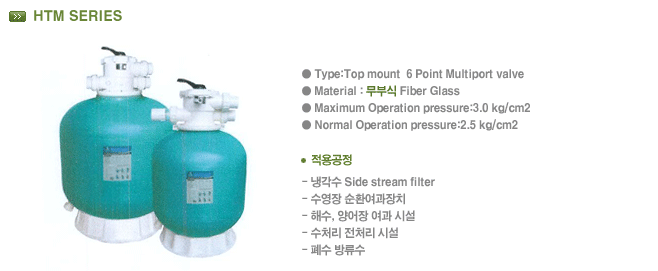

HTM SERIES

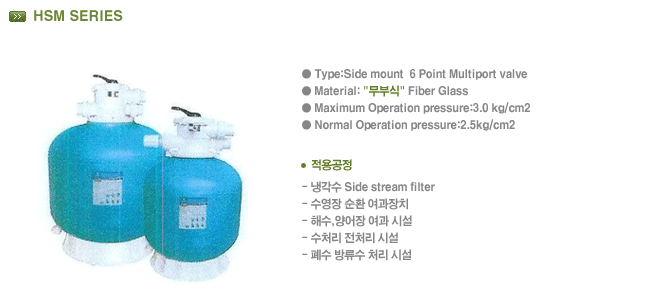

HSM SERIES

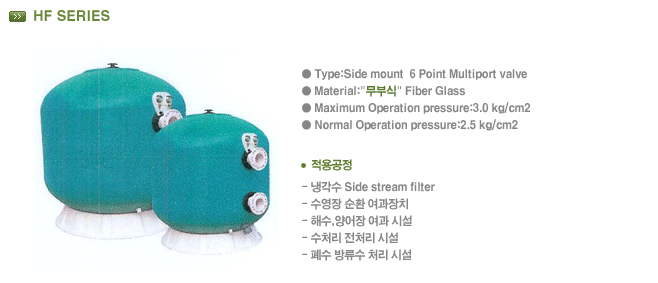

HF SERIES

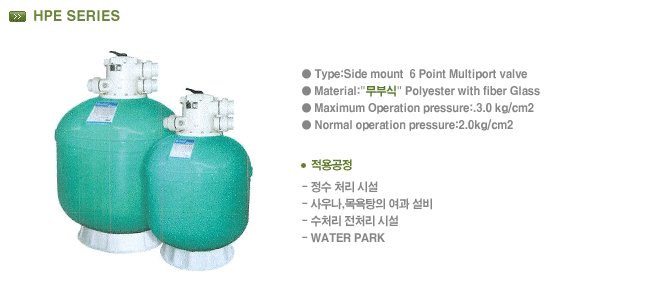

HPE SERIES

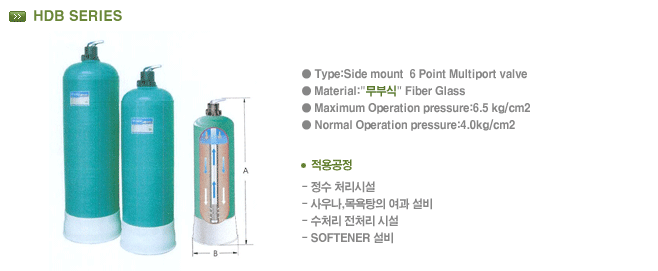

HDB SERIES

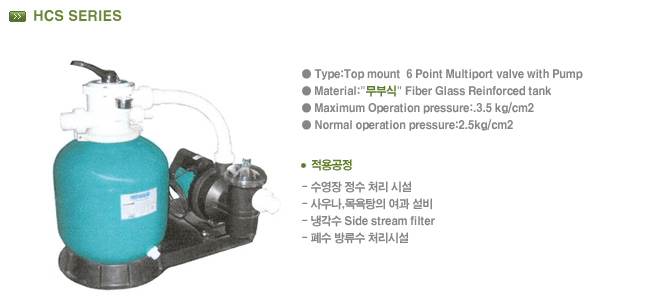

HCS SERIES

Model No.	Tank ￠ B (mm)	Hight A (mm)	Valve port (mm)	Sand 충진량 (kg)	설계유량 (톤/hr)
HTM16	400	750	40	30	6.3
HTM18	450	800	40	40	7.9
HTM21	550	850	40	85	11.5
HTM25	650	970	40	155	16.2
HTM28	700	1080	40	185	19.2
HTM32	800	1180	50	210	25.2
HTM36	900	1280	50	310	30.0
HTM40	1000	1380	50	410	33.0
HTM44	1100	1480	50	460	37.8
HTM48	1200	1580	50	560	42.0
HTM56	1400	1740	50	900	57.0

Model No.	Tank ￠ B (mm)	Hight A (mm)	Valve port(mm)	Sand 충진량(kg)	설계유량 (톤/hr)
HSM18	450	630	40	40	7.9
HSM21	525	675	40	85	11.5
HSM25	625	745	40	155	16.2
HSM28	710	830	40	185	19.2
HSM32	800	905	50	210	25.2
HSM36	900	1005	50	310	30.0
HSM40	1000	1085	50	410	33.0
HSM44	1120	1195	50	460	37.8
HSM48	1200	1325	50	560	42.0

Model No.	Tank ￠ B (mm)	Hight A (mm)	Valve port (mm)	Sand 충진량 (kg)	설계유량 (톤/hr)
HF1200	1200	1400	80	1560	51.6
HF1400	1400	1650	100	1900	69.0
HF1600	1600	1800	100	2600	90.0
HF1800	1800	1900	150	3240	120.0
HF2000	2000	2000	150	4000	141.0
HF2300	2300	2200	200	8200	206.4
HF2500	2500	2300	200	11500	235.2

Model No.	Tank ￠ B (mm)	Hight A (mm)	Valve port (mm)	Sand 충진량 (kg)	설계유량 (톤/hr)
HPE25	625	1010	50	155	1.6
HPE28	710	1055	50	185	2.5
HPE32	800	1200	50	210	3.5
HPE36	900	1300	50	310	4.5

Model No.	Tank￠ B (mm)	Hight A(mm)	Valve port(mm)	Sand 충진량 (kg)	설계유량 (톤/hr)
HDB250	250	1100	25	100	1.6
HDB300	300	1100	25	120	2.5
HDB350	350	1100	25	135	3.5
HDB400	400	1100	25	170	4.5
HDH250	250	1300	25	118	1.7
HDH300	300	1300	25	131	2.8
HDH350	350	1300	25	147	3.8
HDH400	400	1300	15	185	4.9

Model No.	Tank ￠ B (mm)	Hight A (mm)	Valve port (mm)	Sand 충진량 (kg)	설계유량 (톤/hr)	펌프 (Hp)
HCS350	350	660	40	16	4.2	0.3
HCS400	400	740	40	30	6.3	0.5
HCS450	450	800	40	40	7.9	0.75
HCS525	525	840	40	85	11.5	1.0
HCS625	625	960	40	155	16.2	1.5
